Description

:

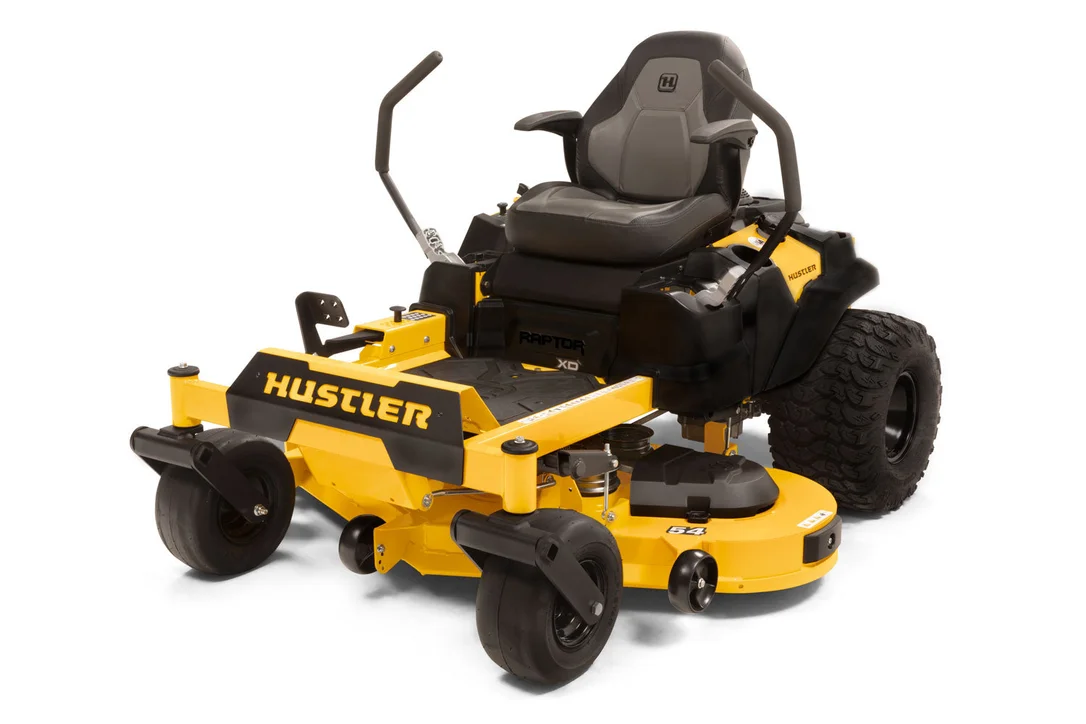

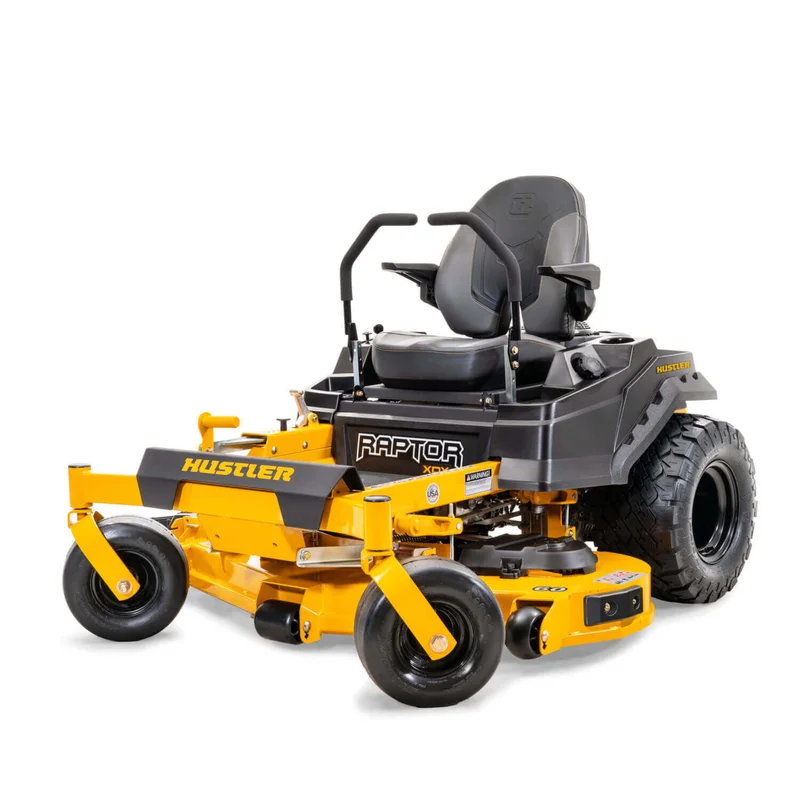

The Raptor® XDX is at the top of Hustler’s residential zero-turn category. It has commercial-grade features like a 10-gauge fabricated deck, cast steel deck hangers, vented and tool-less removable pulley covers, and reaches up to 8mph with Hydro-Gear® ZT-3100® commercial transmissions. The 5-inch-deep deck is designed to allow for mowing through thick grass at top speeds. The heavy-duty XDX is backed by a 3yr / 300hr limited warranty and 1yr / 300hr commercial limited warranty.

• 21.5hp, 23hp & 24hp Kawasaki Engines
• 48″, 54″ & 60” decks
• Up to 8 mph mowing speed
• 3-year / 300 hour limited warranty

Features:

Welded Steel Deck

• Fabricated steel deck for enhanced durability and extended mower lifespan.

Wider Stance

• Provides ample room for operator comfort during use.

SmoothTrak Steering

• Precision steering for easy trimming and maneuvering around obstacles.

Bolstered Seat

• Comfortable seat with armrests and airflow for a pleasant ride.

Rubber Floor Mat

• Minimizes vibration for operator comfort; standard feature on all Raptor models.

Fabricated Frame

• Continuous welded tubular frame for structural integrity.

Foot-Operated Deck Lift

• Easily adjust deck height from 1.5″ to 4.5″ for varying cutting conditions.

Easy to Service

• Features like a flip-up seat pan, removable floor pan, and vented pulley covers facilitate maintenance.

Exclusive BigBite Rear Tires

• Specially designed tires for enhanced traction and performance.

Kawasaki® Power

• Equipped with a powerful V-Twin Kawasaki® engine for reliable performance.

Specification:

• Engine Manufacturer: Kawasaki FR651
• Engine Horsepower: 21.5
• Displacement: 726cc
• Cooling: Air Cooled
• Air Cleaner: Standard
• Engine Warranty: 3 Year Warranty

Drive System Specifications:

• Type: Dual Hydrostatic
• Transmission: Hydro-Gear ZT-3100®
• Hydraulic Lines: Integrated with steering levers
• Reservoir Capacity: 3 gallons
• Hydraulic Cooling: N/A
• Engine Warranty: 3 Year Warranty

General Specifications:

• Seat: Bolstered extra high-back seat with armrests and built-in lumbar support
• Cup Holder: Yes

Dimensions:

• Front Tire: 13 x 6.5 inches
• Drive Tire: 22 x 9.5-10 BigBite™
• Weight: 646 lbs
• Height: 43.7 inches
• Length: 71.1 inches
• Width w/ Chute Up: 57.2 inches
• Tire-to-Tire Width: 45.8 inches
• Productivity (Acres per Hour): 3.10

Warranty:

• Residential Warranty: 3 Year/300 hour
• Commercial Warranty: 1 Year/300 hour

Dimensions with Catcher:

• Catcher Style: 2-bag
• Powered/Non-Powered: Powered
• Catcher Capacity: 7.2 bushels
• Mower Length w/ Catcher: 92.3 inches
• Mower Width w/ Catcher: 57.2 inches
