Description

********NO LONGER AVAILABLE********

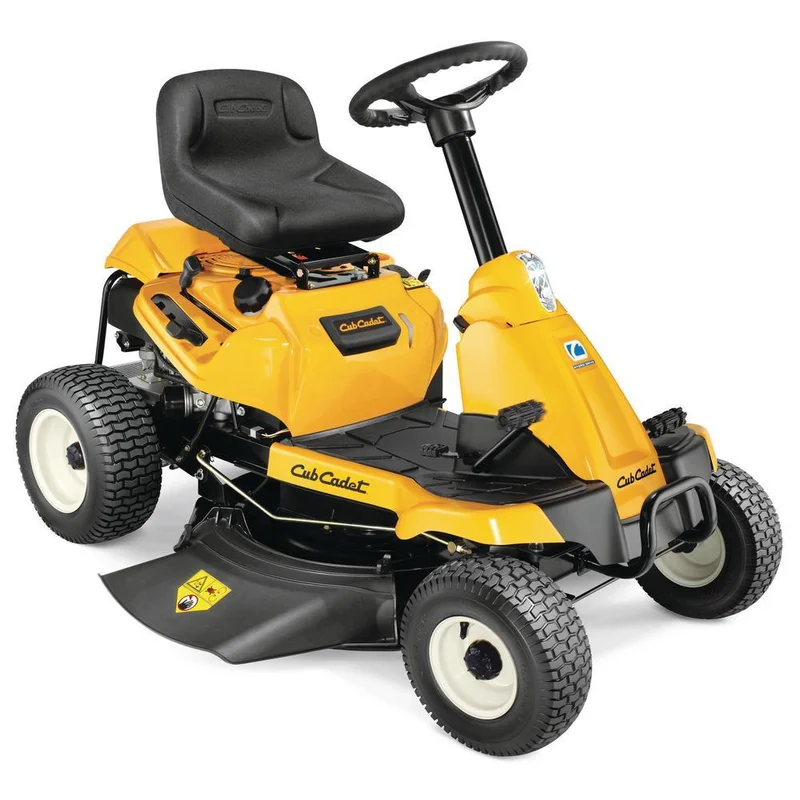

The CC 30 is approximately the same length as a standard walk-behind mower, so that you can easily maneuver though narrow spaces. It can also be stored conveniently.

Foot-Controlled Hydrostatic Transmission.
New LED High Illumination Headlight.

WARRANTY:3-year/120-hour limited residential warranty

Specifications:

ENGINE: 7T84JUA Cylinders: Single/Cast-iron sleeve.

Engine Type: 382cc Cub Cadet® OHV.

POWERTRAIN:

Lubrication:
Fully pressurized, automotive-style oil pump w/ spin-on oil filter.

MOWER DECK:

Cutting Width/Blades: 30″ single blade.

Deck Cutting Height: 1.5″ – 4″

Deck Lift: Manual/5-position.

Deck Construction: 14-gauge steel.

Deck Spindles:
Die-cast aluminum spindle housings w/ ball bearings for long life.

Mulch Kit: Standard.

Deck Wash:Patented SmartJet™ high-pressure deck washing system.

ELECTRICAL SYSTEM:

Charging System: Flywheel alternator.

Alternator: 3.75A AC / 5A DC.

Battery Voltage: 12V/155 cold crank amp.

OPERATION:

PTO Clutch: Manual lever control.

Seat:Cub Comfort™ seat, multiple position, manual seat adjustment.

Safety Systems:
Neutral start, operator presence, reverse safety switch, brake pedal lock, RevTEK™ reverse mowing technology.

ADDITIONAL SPECIFICATIONS:

Wheelbase: 46.5″

Engine Oil Capacity: 1.3 qt.

Fuel Tank Capacity: 1.3 gal.

Overall Length: 62″

Forward Speed: 1.5 – 4.25 mph.

Estimated Weight w/ Deck: 340 lbs.

Reverse Speed: 1.5 – 4.35 mph.

POWER SYSTEM:

Engine to Transmission: Hydrostatic, Foot (Hydro-Gear T2HP).

Transmission Housing: Die-cast aluminum.

FRAME:

Frame: 14-gauge high-strength low alloy steel.

Bumper: Steel tube.

COMFORT & CONTROL:

Steering:Manual sector and pinion.

SPECIFICATIONS:

Headlight:LED.

Turning Radius:18″

STEERING:

Spindles:3/4″

Front Axle:Steel/14-gauge.

CONTROLS:

Brakes:Automotive-style disc.

• AIR FILTER:  937-05129 OR 490-200-C070
• OIL FILTER:  951-12690 OR 490-201-C010
• FUEL FILTER:  951-3013 OR 490-202-M002
• SPARK PLUG:  951-10292A
• DECK BELT:  954-05001 OR 490-501-C065
• DRIVE BELT:  954-05130 OR 490-501-M088
• BLADE:   942-04385 OR 490-110-C135
• XTREME BLADES: N/A
• IGNITION KEY:  925-1745A
• ENGINE OIL:  490-000-C044

DOWNLOAD MANUALS:

OPERATOR’S MANUAL

ENGINE MANUAL

ACCESSORIES FOR CC 30 H RIDER

19A30014OEM          1450              1220-0128
